7cad BatchFixScribes

Instruction

Click here to download sample dxf files of steel plates that require fix

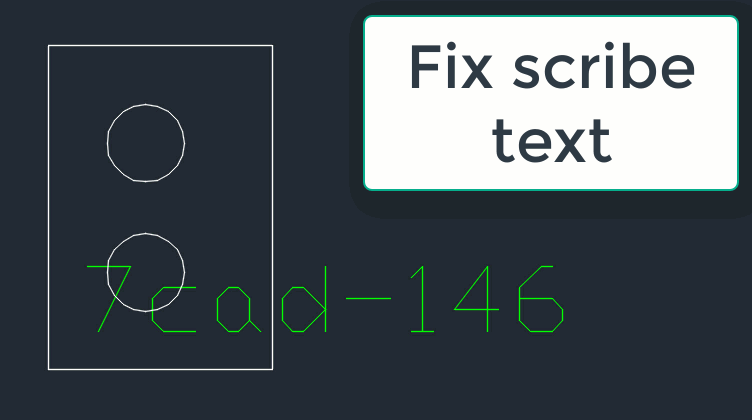

After download, open dxf files and you can see the scribe texts are not within the plates. Go back to this page, upload the files and click Run. Wait a minute and you will get the dowload link of the result drawings.

Browse Drawings.zip folder to fix

Browse a single drawing file to fix

Move and scale texts in Scribe layer to fit inside the plate. ~ 10 mm space is the minimum allowance around the text.

Offset slot lines

Offset distance (mm): negative value to make smaller slot; possitive value to make bigger slot.

Allways run offset, ignore interferences with boundary lines

Draw underscore line if text contains number 6 and/or 9, for a clearer readability since number 6 can be mistakenly read as number 9 if upsidedown.

Instruction

More details about the app are in its desktop version page here
