General Usage Instructions

1. 7cadSolidCut

Select 2 solid frames on a horizontal plane. Then a window will bring up for you to pick a cutting option. You can choose "Cut solid 1 only" or "Cut solid 2 only" or "Corner cut". For corner cut, there can be up to 4 corners made by the 2 selected solids. Corner cut can be a butt join, or a miter join.

2. 7cadSolidDim

Select many solid frames. The app will draw dimensions for each one.

3. 7cadSolidSchedule

Select mamy solid frames. The app will collect their dimensions and give you a BOM table. Each solid type has a numeric. Solids with the same dimensions but flipped will have the same tag number, but marked as flipped.

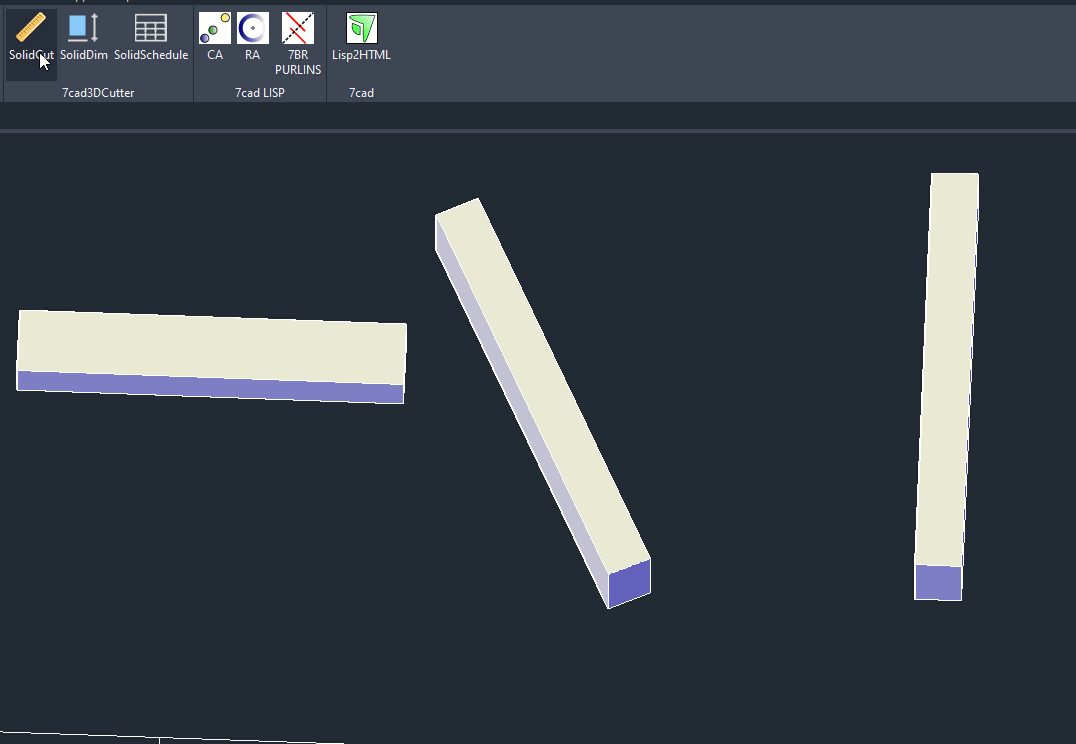

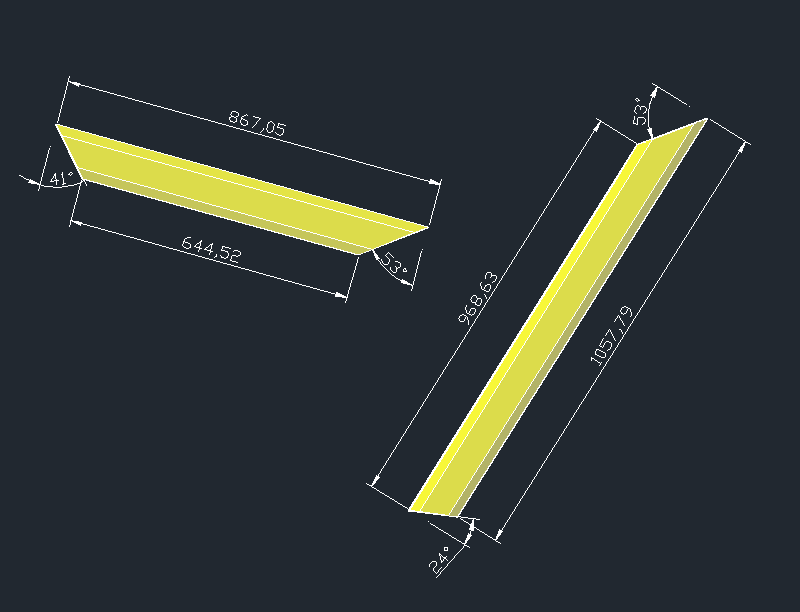

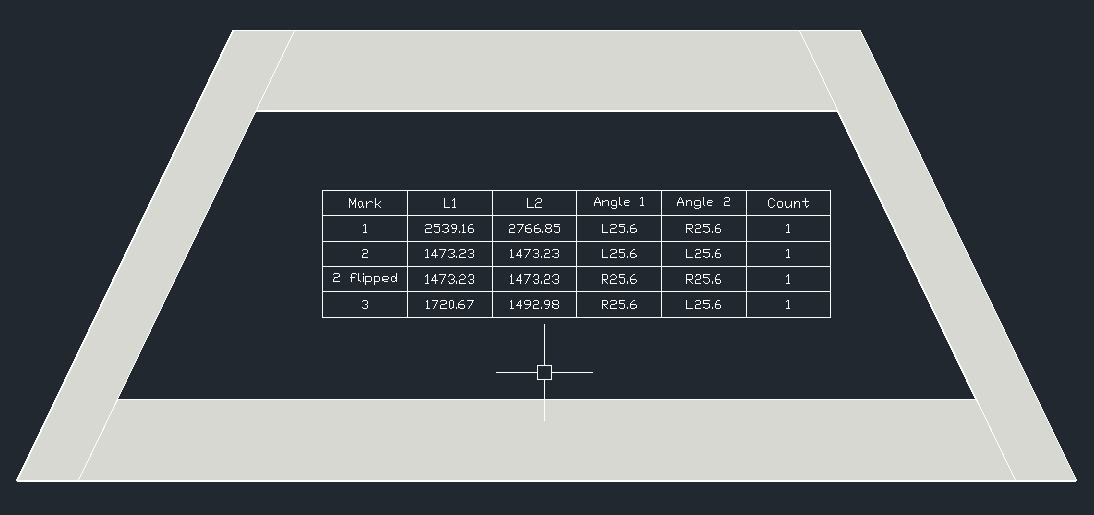

Screenshots

Commands

Ribbon/Toolbar Icon Command Command Description

7cadSolidCut

Select 2 solid frames on a horizontal plane to create a join.

7cadSolidDim

Select many solid frames. The app will draw dimensions for each one.

7cadSolidSchedule

Select mamy solid frames. The app will collect their dimensions and give you a BOM table. Each solid type has a numeric. Solids with the same dimensions but flipped will have the same tag number, but marked as flipped.

7cad3DCutterActivate

Show activation window.

Version History

Version Number Version Description

1.0

Initial release.
