General Usage Instructions

1. CA: copy objects in an array-like way.

Select objects, pick a base point and a direction point. Then type your distance to copy, or just press enter. You can create an array of grid lines, or rebar dots etc. at various spacing by using this command.

2. RA

This is similar to CA command, except now you are rotating objects.

3. 7BRPURLINS

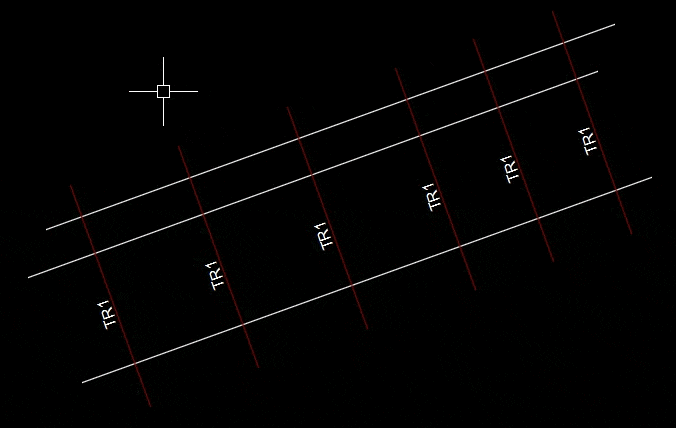

This command is for steelwork. Select purlin lines and enter lapping length. The code will find crossing lines (they can be columns or beams or trusses) and break each purlin at every intersection point, extend each purlin to both sides a distance exactly equal to your specified lapping length.

Screenshots

Commands

Ribbon/Toolbar Icon Command Command Description

CA

Select objects, pick a base point and a direction point. Then type your distance to copy, or just press enter. You will have an array of grid lines, or rebar dots etc. at various spacing. Type "U" to undo previous actions. Type "X" to select exit option.

RA

This is similar to CA command, except now you are rotating objects. Select objects, pick a base point. Then type your rotation angle to copy - rotate, or just press enter. You will have a polar array at various spacing. Type "U" to undo previous actions. Type "X" to select exit option.

7BRPURLINS

Select purlin lines and enter lapping length. The code will find crossing lines (they can be columns or beams or trusses) and break each purlin at every intersection point, extend each to both sides a distance exactly equal to your specified lapping length.
