General Usage Instructions
1. Install the app.
2. Open AutoCAD. Then you can see the app's ribbon in Add-ins tab or 7cad Lisp tab
3. Click "More commands": Since version 2.0, 7cad Lisp is inluded more magic commands for drafting. A command palette will bring up with list of commands, screenshots and instructions
Screenshots of original commands

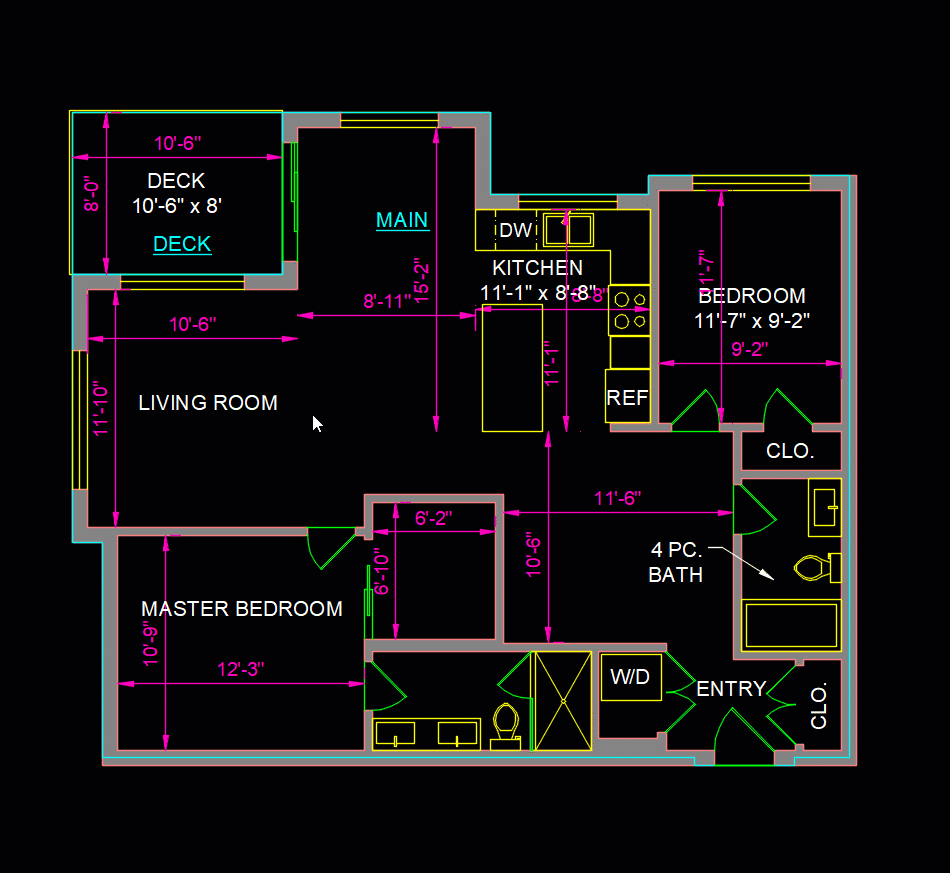

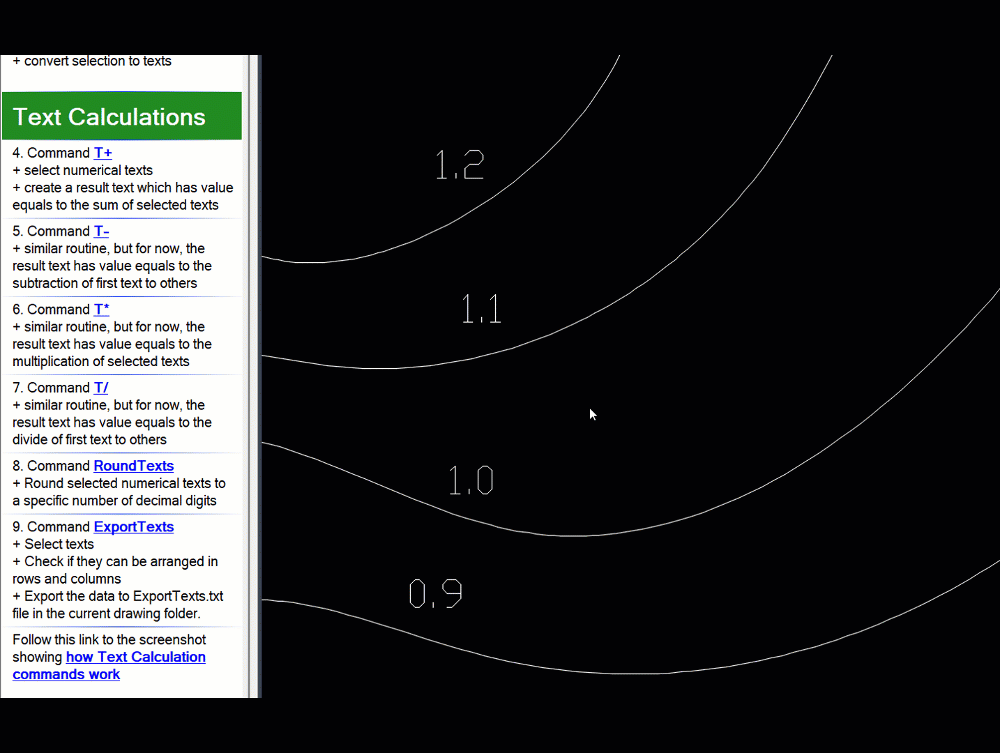

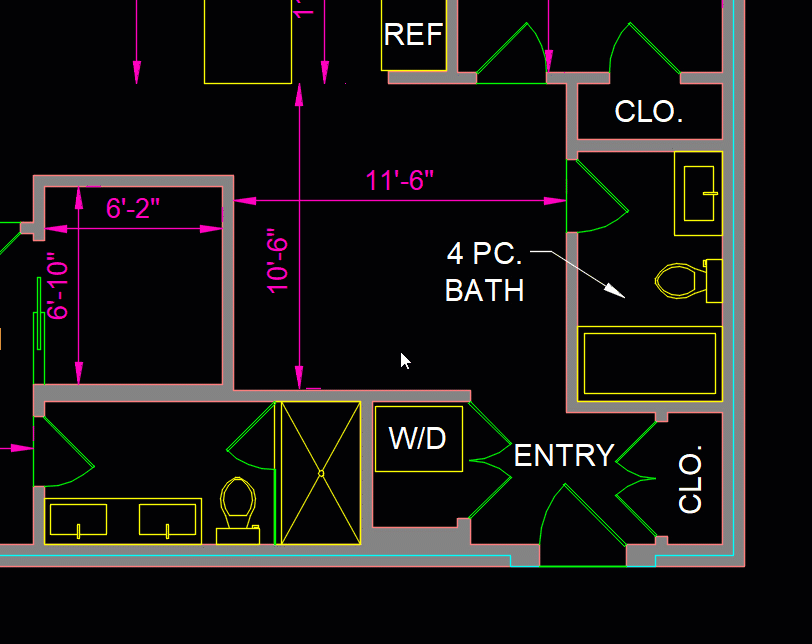

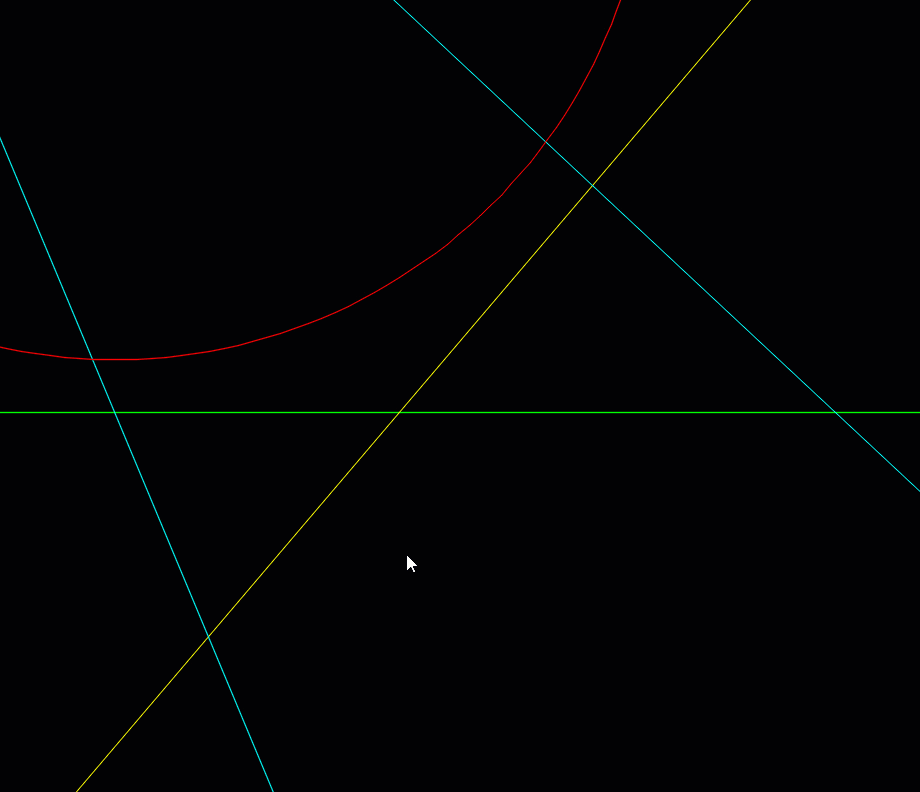

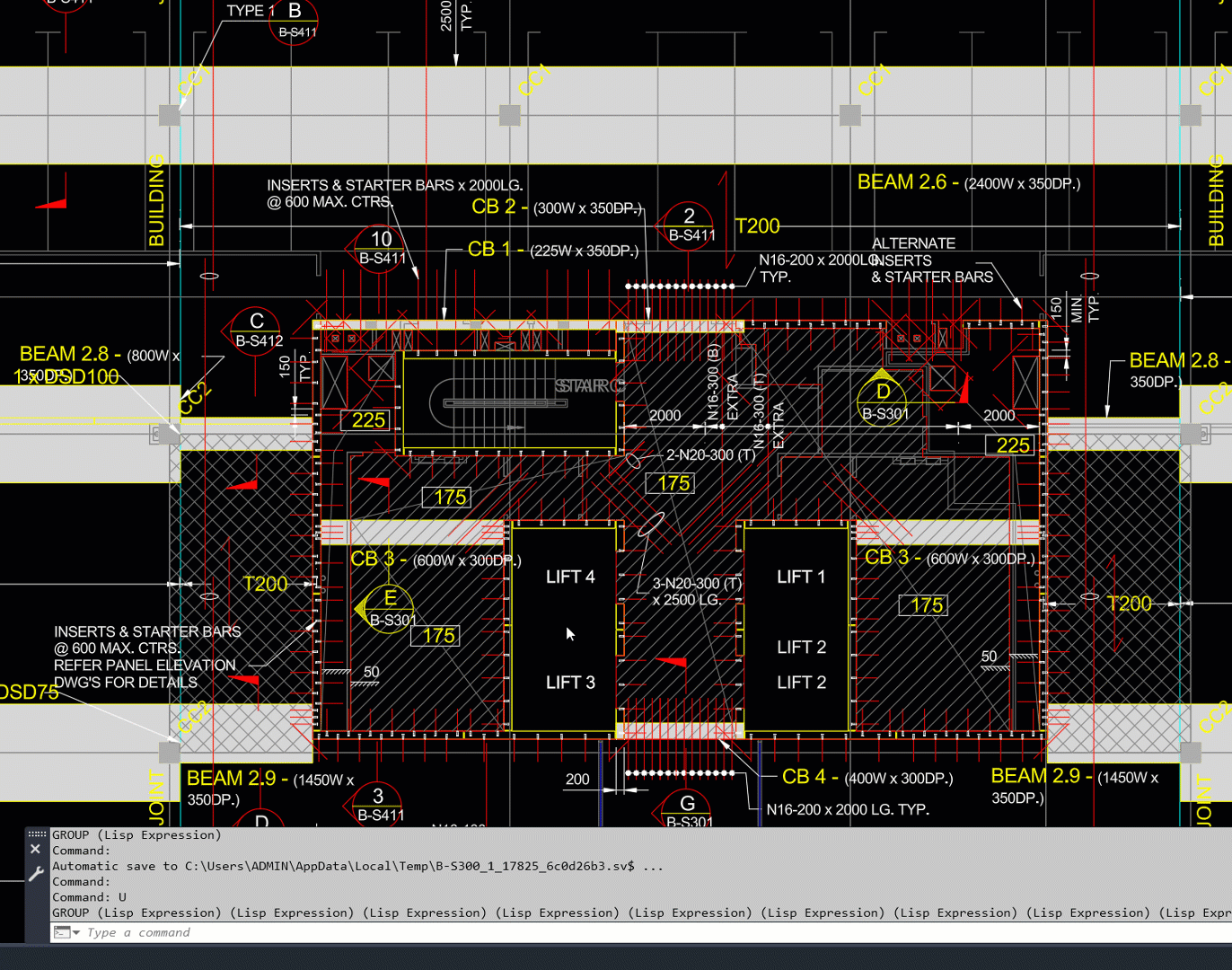

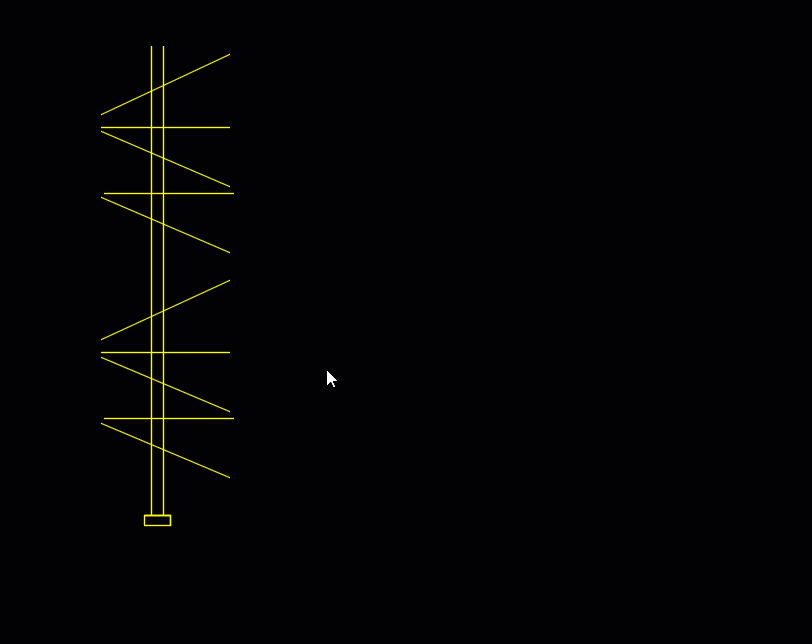

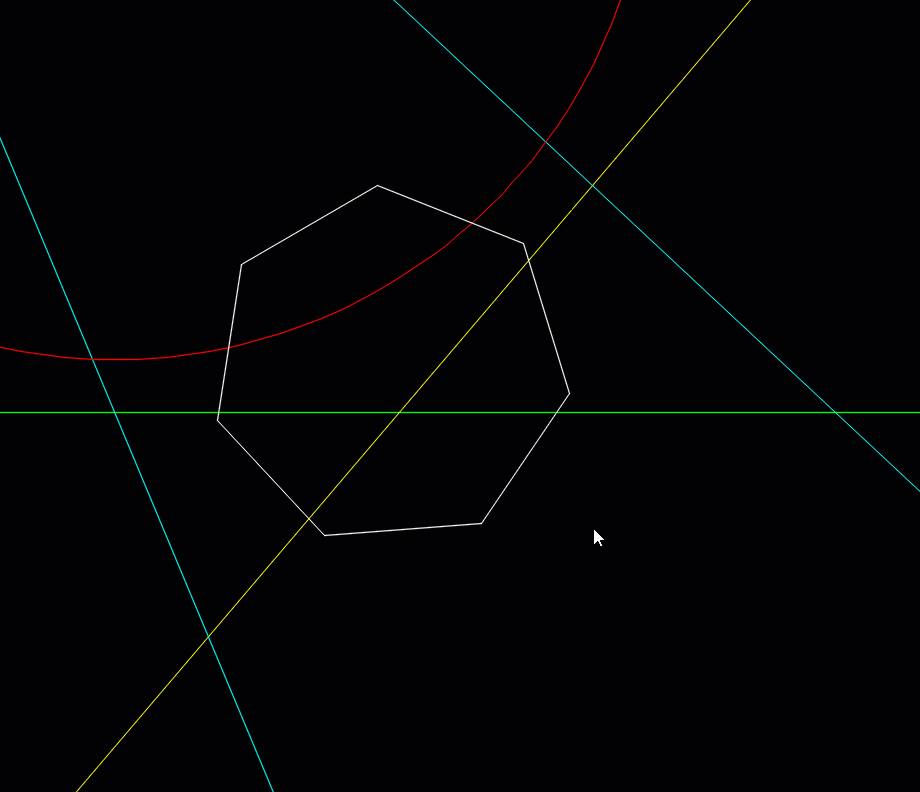

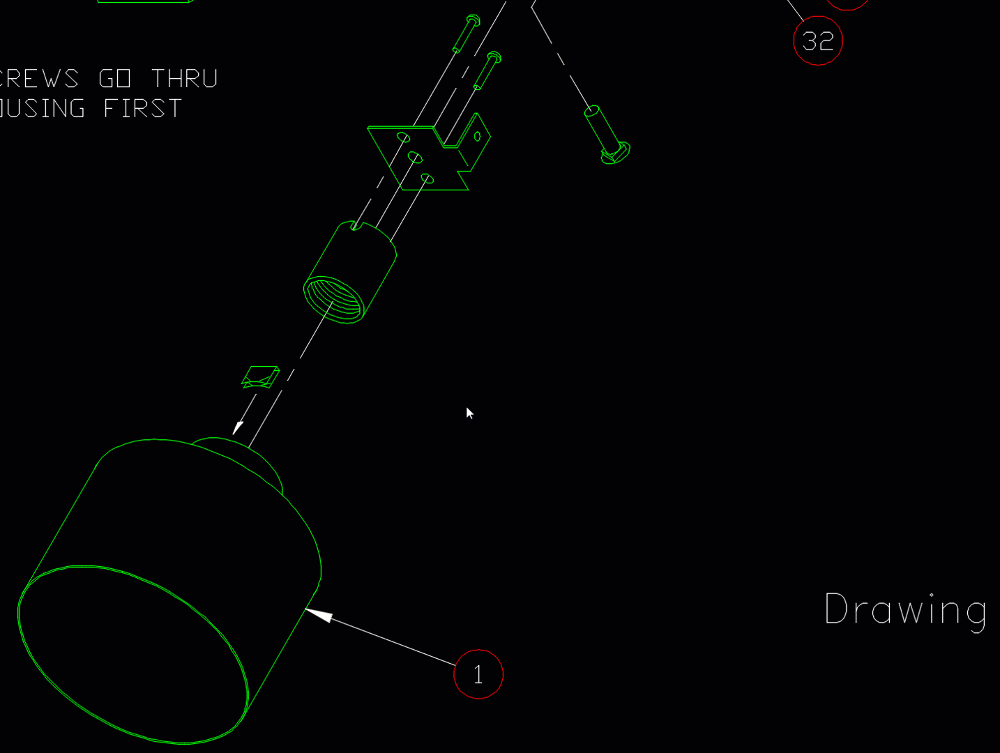

Screenshots of Additional Commands
Version History
| Version Number | Version Description |
|---|---|
|
2.0 |

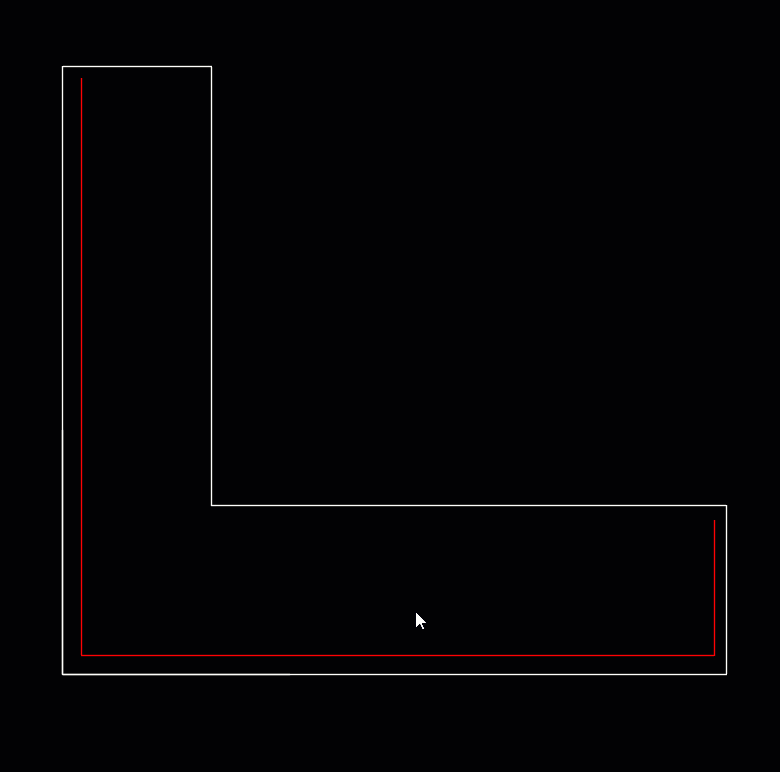

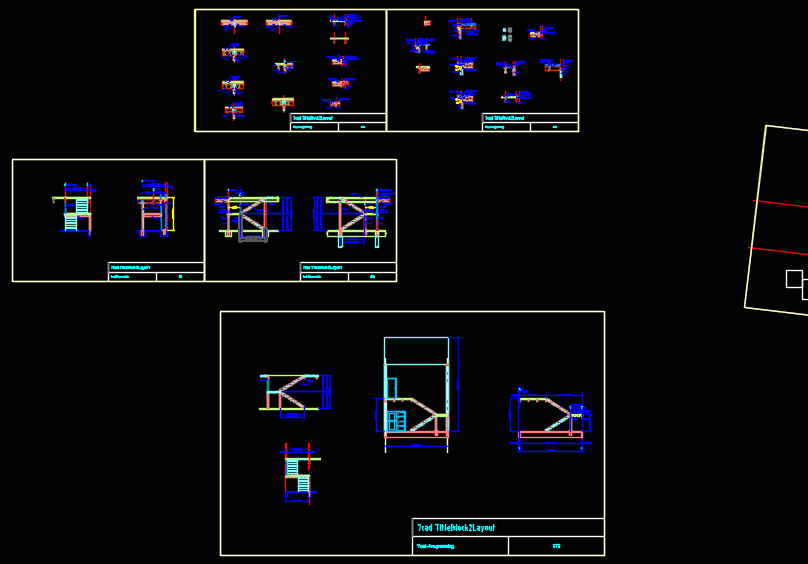

Added 2027 support Added new bundles of commands: ArrayRebar, Text Tools, Xsketch, PlotAll, etc. |
|
1.1 |
Added 2020 support (No change in version number). |
|
1.1 |
Added 2019 support. |
|
1.1 |
Added 2018 support + Fix error not detect "off-screen" lines in 7BRPURLINS. + Added 2017 support. |
|
1.0 |
First release. |
